Polyjet 3d printing has resolution and multi-material capabilities of PolyJET 3d printing make it a good source for small and large concept prototypes and master patterns. Ideal for character models with fine sculpting detail, Polyjet resins can be painted, cast, and custom finished. Simulate over-molding, build flexible, translucent, and colored parts, to create complex models with exceptional detail.

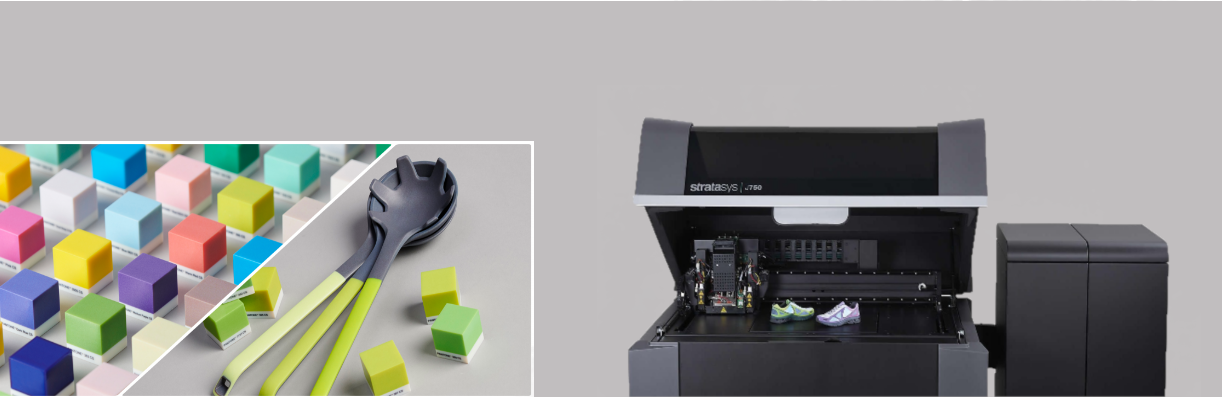

PolyJET 3d printing is similar to an inkjet printer where liquid polymer is sprayed in exacting detail and instantly cured with a single swipe of the printer head. In high resolution parts these layers can be as thin as 14 microns. Finished parts can be used as is or for higher production volume, they can be used as the master parts for mold creation.

PolyJET materials are available in hundreds of colors and can be used in a single print.

princess figure polyjet 3d printing

PolyJET princess figure showing multi-color print. There is no need for paint or finishing.

lollypop model polyjet 3d printing

PolyJET lollypop model testing different color combinations before going to production.

POLYJET BENEFITS

  • High Resolution
  • High Speed – in some cases same day turnaround
  • Fine detail and smooth surfaces directly off machine
  • Variety of durometers and colors can be printed in same part
  • Hundreds of color options
  • Prints complicated geometries and living hinges

APPLICATIONS USING POLYJET 3D PRINTING

  • Presentation models
  • Master patterns
  • Complex parts
  • Simulated Overmolding

MATERIALS

  • ​PolyJet technology offers a diverse range of materials, enabling the creation of prototypes and parts with varying properties, from rigid and transparent to flexible and biocompatible. Here’s a curated list of available PolyJet materials, each linked to its detailed description:
    • Vero™ Family
      A versatile group of rigid photopolymers available in multiple colors, ideal for producing realistic prototypes with smooth surfaces and fine details.
    • VeroVivid™ Color Resins
      These materials add vibrant, translucent colors to 3D printed parts, enabling the simulation of over 500,000 unique color combinations when blended with other resins.
    • Agilus30™
      A flexible, rubber-like material with enhanced tear resistance, suitable for applications requiring repeated flexing and bending.
    • Digital ABS Plus™
      Simulates standard ABS plastics, offering high impact resistance and toughness, ideal for functional prototypes and tooling.
    • RGD720
      A translucent, multi-purpose photopolymer with high dimensional stability and surface smoothness, perfect for concept modeling and design verification.
    • High Temperature
      This material offers high thermal resistance, making it suitable for applications requiring heat-resistant parts.
    • Biocompatible Materials
      Rigid photopolymers designed for medical applications, offering high dimensional stability and optical transparency, suitable for applications requiring prolonged skin contact.
    • Tango™
      A family of rubber-like materials ideal for applications requiring soft touch, non-slip surfaces, or shock absorption.
    • VeroClear™
      A transparent material similar to polymethyl methacrylate (PMMA), used to simulate clear and transparent products.

    For a comprehensive overview of all PolyJet materials, you can visit the Stratasys PolyJet Materials Catalog.

    Each material is engineered to meet specific application requirements, ensuring that you can select the best option for your project’s needs.

PolyJET 3D BUILD ENVELOPE

  • Build Size:  350 x 350 x 200 mm (13.8 x 13.8 x 7.9 in.)
  • Build Quality:  down to 14-micron (0.00055 in.) resolution
